Intimus Dual Shaft Data Disintegrator

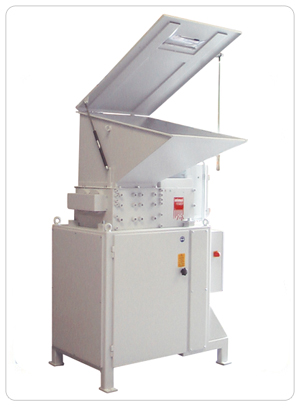

intimus Dual Shaft Disintegrator
Key Features
Particle Size
6, 8, 10, 30mm
Capacity
approx. 22 units 3.5" HDD at 6mm per/h
Cutting Zone (mm)
380 x 500mm
Motor Power kW
3,0 kW
Control
Moeller easy 512 PLC
Noise Level
82 db(A)
Supply voltage
400 Volt
Warranty
2 Year Warranty included
Width
130 cm
Depth
130 cm
Height
208 cm
Weight gross
1200 kg
Weight new
1060 kg
Type of packaging
optional wooden crate
Packaging Dimensions
145x145x240 cm



Using the unique Hybrid Technology, the intimus dual shaft disintegrator makes perfect use of both shredding and disintegration.

Designed for industrial applications, the shredding section is equipped with 30 mm wide knives from special tool steel and a robust electric geared drive. Knives are hardened to special specification and use a special geometry to provide for perfect processing of HDD and other media. Via the feeding slot located in the top cover, media can be continuously fed to the cutting block. Once shredded, the remaining particles run through the installed disintegration screen enabling the system to offer a practical throughput of 22 to 50 HDD per hour at low wear and energy consumption.

As with the regular Single Shaft Disintegrators, users have the option of installing a screen with a different mesh size to adapt the final granule size to the required demand. As a standard, mesh sizes of 6, 8 or 10 mm are available.

High volume technology, proven for decades, is the basis of the intimus®POWER Disintegrators.

For secure destruction of bank notes, paper and other types of media, you need carefully adapted machines with specially designed rotors and cutting geometries. This ensures efficient feeding and maximum throughput with these delicate materials - saving time and effort.
Via a screen, the particles leave the cutting chamber towards a hopper and are evacuated from there. By simply installing a screen with a different mesh size, the shred size of the machine can be easily adapted to the respective demand.
All intimus®POWER Disintegrators can be equipped with an optional sound enclosure. The clean-cut box from painted sheet steel is equipped on the inside with special padding and provides for reduction of the sound level during operation to approx. 80 db(A). Wide front doors enable convenient access for service and maintenance work

Disintegrator Drum

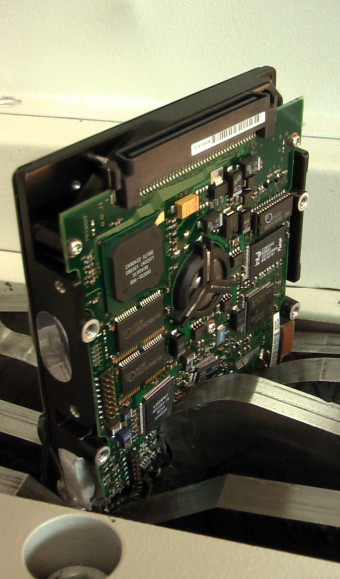

Hard Drive Disintegrator
