M6300 USB Duplicator

M6300 USB Copier
Key Features

Configuration
10, 20, 30, 40 slots
Typical Copy/Verify Speed
720 MB/min
Target Devices
All USB Mass Storage Devices
Operation Modes
Stand-Alone, software controlled, remote controlled
Job- Operations
Copy, Verify, Intelligent Verify, Smart Copy (Data only), File Copy
Data Source
Master, Image File, Files, Bit-Pattern
Smart Copy Support
FAT/FAT32/NTFS/HFS+
Operating System
SuSE Linux 10.2
Monitor, Key Board & Mouse
Included
Hard Disk Duplication
Supported
Warranty
1 Years Back to Base included


The M6300 series duplicators are professional USB Duplicators with built-in PC's running a full Linux operating system that tests and copies any USB storage device including USB Hard Drives. The M6300's unique architecture provides the highest copy speeds available for parallel duplication of USB mass storage devices.

The M6300 series comes in 10,20, 30 or 40 socket version.

This system allows complex operations to be created, allowing the user to create complex test and duplication functions. One unique feature allows the user to partition and create read-only USB Flash drives.

The M6310 Key Features:

- Stand-Alone operation or full featured Linux PC interface
- Built in PC with 160GB HDD for image archiving, additional storage can be added easily via ethernet or external HDD.
- 17" VGA LCD, PC keyboard, and mouse supplied with each M6300
- 10-40 target sockets + 1 master socket
- Supports up to 1.5Amps per socket.
- Easily create and edit M6300 duplication and tests scripts
- Manage master image files and customer specific scripts
- Total USB content copy speed up to 7GB per minute
- Quality USB test functions including Speed Test and Current Measurement
- Optimised for USB hard drive duplication with FAT, NTFS, HFS+, EXT Smart Copy
- Multi-partitioning of USB drives with CD-ROM and Read-Only Partition Support
- Image checksum, CRC, and MD5 checking.
- SQL Database, login serial number, Vendor ID, Product ID, current test and Speed Test results
- Automatic checksum of data providing accurate verification

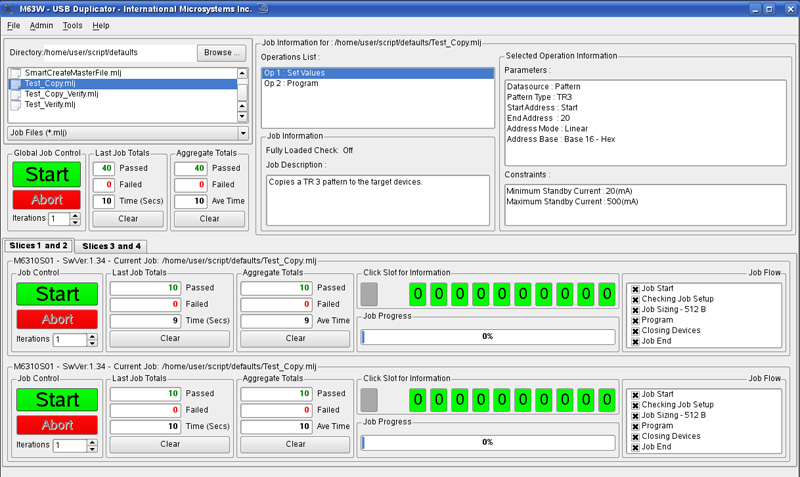

Management Software:

M6300 GUI
